Build a Read-Only DevOps Incident Analysis Workflow

Collect a bounded incident snapshot from monitoring, logging, and deployment APIs, correlate the evidence, and render a reviewable brief without changing production systems. This baseline workflow uses only read operations. It does not restart services, roll back releases, change issues, or send messages.

Build the workflow in this order:

1. Open Incident receives an explicit incident scope.
2. Normalize Incident Scope validates services, environment, and UTC time window.
3. Read Metrics API, Read Logs API, and Read Deployments API collect evidence in parallel.
4. Join Evidence waits for the three independent results.
5. Correlate Evidence creates a deterministic timeline and separates facts from hypotheses.
6. Review Incident Brief renders the result for a human operator.

Read-only behavior is a permissions property, not a prompt instruction. Enforce it with provider credentials, HTTP methods, endpoint allowlists, SSH command allowlists, and the absence of write-capable tools.

Understand the trust boundaries

The workflow crosses several independent security and data boundaries:

Do not place provider tokens in Code, URLs, block labels, screenshots, logs, or the incident brief. Keep them in the supported integration or protected workspace resource used by the request path.

1. Create a dedicated pipeline

Create a pipeline named Read-Only DevOps Incident Analysis. Keep it separate from remediation workflows so a later permission change cannot silently turn analysis into action.

Start with Manual Trigger named Open Incident. Use a non-sensitive test body:

Copy{
  "incidentId": "INC-2026-0821-017",
  "environment": "production",
  "services": ["registration-api", "worker"],
  "window": {
    "from": "2026-08-21T12:00:00Z",
    "to": "2026-08-21T12:20:00Z"
  },
  "correlationIds": ["req_7f2a"]
}

An operator must choose the scope deliberately. Do not default to every service, every environment, or an unbounded time range.

2. Normalize the incident scope

Add Code named Normalize Incident Scope. Validate the input before it reaches any provider query:

Copyconst ALLOWED_ENVIRONMENTS = new Set(["staging", "production"]);
const ALLOWED_SERVICES = new Set([
  "registration-api",
  "worker",
  "notification-api"
]);
const MAX_WINDOW_MS = 60 * 60 * 1000;

export async function run(input: any) {
  const incidentId = String(input?.incidentId ?? "").trim();
  const environment = String(input?.environment ?? "").trim();
  const services = Array.isArray(input?.services)
    ? [...new Set(input.services.map(String))]
    : [];
  const correlationIds = Array.isArray(input?.correlationIds)
    ? [...new Set(input.correlationIds.map(String))]
    : [];
  const from = new Date(input?.window?.from);
  const to = new Date(input?.window?.to);

  if (!incidentId || incidentId.length > 120) {
    throw new Error("A bounded incidentId is required.");
  }
  if (!ALLOWED_ENVIRONMENTS.has(environment)) {
    throw new Error("Unsupported environment.");
  }
  if (!services.length || services.length > 5) {
    throw new Error("Select between one and five services.");
  }
  if (services.some((service) => !ALLOWED_SERVICES.has(service))) {
    throw new Error("Unsupported service.");
  }
  if (correlationIds.length > 20 || correlationIds.some((id) => id.length > 160)) {
    throw new Error("Correlation ID scope is too large.");
  }
  if (!Number.isFinite(from.getTime()) || !Number.isFinite(to.getTime())) {
    throw new Error("The incident window must contain valid timestamps.");
  }
  if (from >= to || to.getTime() - from.getTime() > MAX_WINDOW_MS) {
    throw new Error("Use a positive incident window no longer than 60 minutes.");
  }

  return {
    incidentId,
    environment,
    services,
    correlationIds,
    window: { from: from.toISOString(), to: to.toISOString() }
  };
}

The allowlists are illustrative. Match them to the services an operator is authorized to inspect. Validate the raw values before interpolating them into URLs or provider query languages.

3. Prepare read-only data access

Create separate credentials for analysis instead of reusing deployment, administrator, or incident-response automation identities.

If a provider exposes read and write endpoints behind the same token, put an enforcing gateway in front of it. A convention such as naming a token read-only is not a control.

4. Read three evidence sources in parallel

Add three Web Request blocks after Normalize Incident Scope:

• Read Metrics API
• Read Logs API
• Read Deployments API

Configure each block with GET, a provider-specific query endpoint, a finite timeout, and an explicit response-size boundary. URL-encode all dynamic query values. Do not call ingest, delete, configuration, deployment creation, or shutdown endpoints.

Return a normalized envelope from each branch, even when a provider has no matching records:

Copy{
  "source": "metrics",
  "query": {
    "services": ["registration-api", "worker"],
    "from": "2026-08-21T12:00:00.000Z",
    "to": "2026-08-21T12:20:00.000Z"
  },
  "observedAt": "2026-08-21T12:22:04.000Z",
  "status": "ok",
  "items": []
}

Keep status: "empty" distinct from status: "unavailable". An empty successful query is evidence; an authentication failure or timeout is missing evidence.

5. Join the three branches correctly

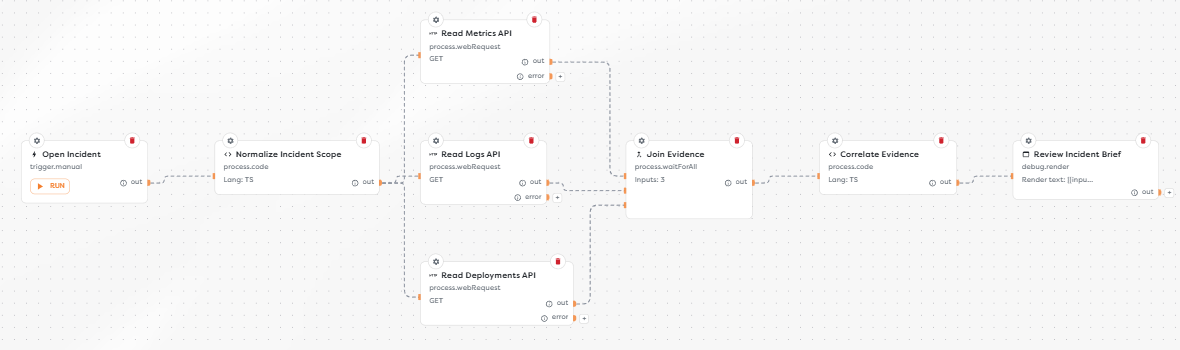

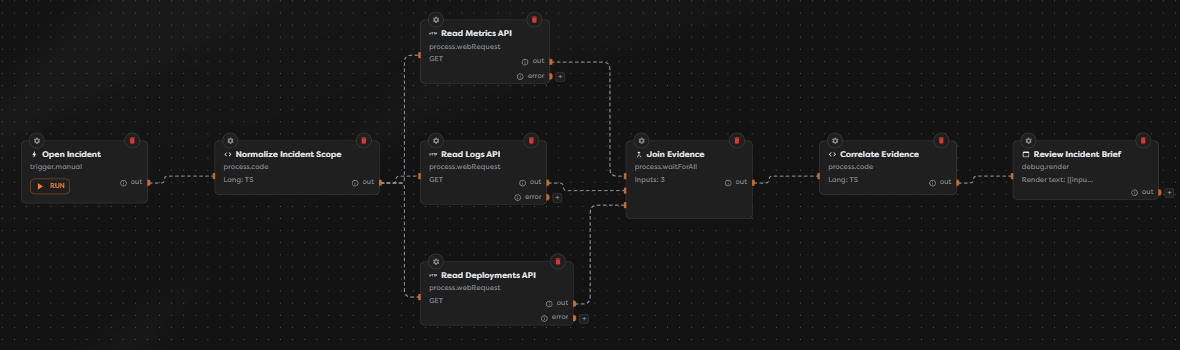

Add Wait for all named Join Evidence and set Inputs to 3. Connect every evidence source to a different target handle:

Setting Inputs to 3 does not distribute connections automatically. Verify that the Designer shows three separate orange input ports and that one edge terminates at each port. Three edges attached to the same in port are incorrect and do not represent three independent inputs.

Decide explicitly whether a provider error should fail the run or arrive as a normalized unavailable envelope. Do not convert a missing source into an empty successful source, and do not let Join Evidence make incomplete evidence look healthy.

6. Correlate evidence deterministically

Add Code named Correlate Evidence. Treat provider timestamps as UTC, retain their source, and preserve collection time separately from event time.

The output contract should contain:

Copy{
  "incident": {},
  "facts": [],
  "timeline": [],
  "hypotheses": [],
  "contradictions": [],
  "missingSources": [],
  "nextReadOnlyChecks": []
}

Apply these rules:

• A fact must name its source and timestamp.
• A deployment near an error spike is correlation, not proof of causation.
• A hypothesis must list supporting and contradicting evidence.
• Missing, truncated, late, or timezone-ambiguous evidence must remain visible.
• Suggested checks may read more data but must not contain restart, rollback, deploy, edit, delete, acknowledge, or send operations.
• Redact credentials, authorization headers, personal data, session values, and full log payloads before rendering or passing data to AI.

The Code examples use the Builders runtime contract. When adding provider calls in Code, use the direct runtime references:

7. Render the incident brief

Add Render named Review Incident Brief. Present the incident scope, collection status for every source, UTC timeline, verified facts, hypotheses with confidence, contradictions, missing evidence, and next read-only checks.

End the brief with an explicit statement:

CopyNo automated remediation was performed.

Do not render raw authorization headers, credentials, full log bodies, personal data, or unrestricted provider responses. Link to the original provider record only when its access control is appropriate for the report audience.

8. Add optional sources without breaking read-only behavior

The baseline graph stays useful without these additions. Add one only when it supplies evidence that the three API branches cannot provide.

Read issue context

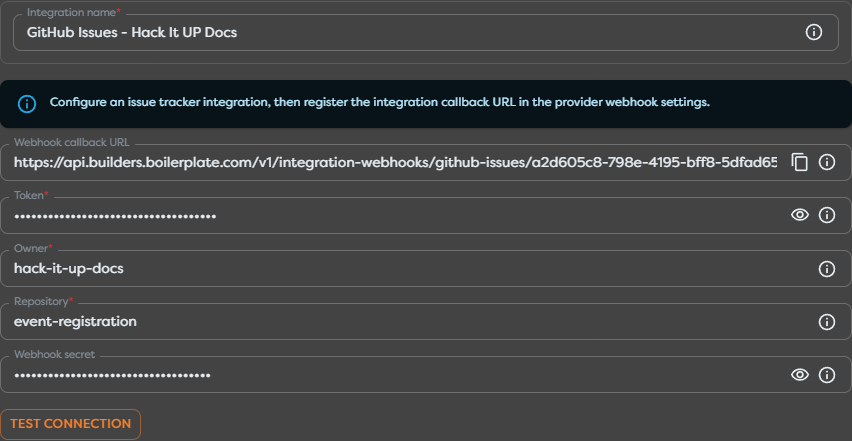

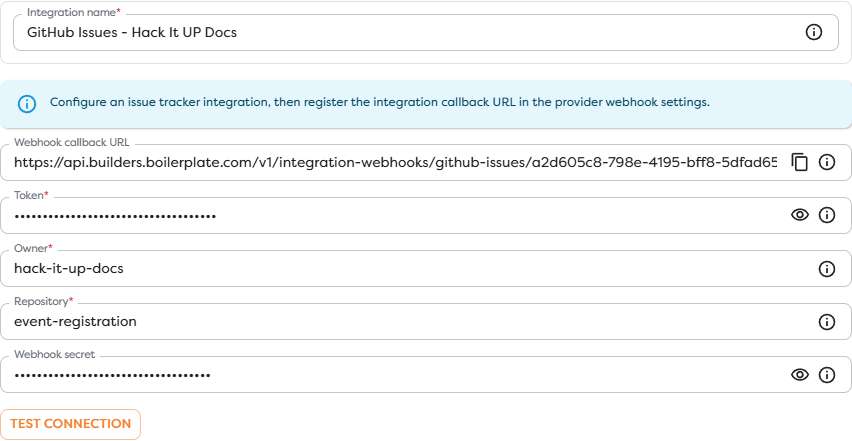

Use Issue Action with a GitHub Issues, GitLab Issues, or Jira integration and select a read operation. The block is the workflow operation; the integration supplies provider identity and connection settings.

Grant the integration account only access needed to read the intended projects. Do not add comments, labels, assignments, transitions, or issue creation to this analysis pipeline.

Read host or cluster context

Use SSH Action only through an SSH remote access integration with host key verification, a dedicated unprivileged account, and an explicit Allowed commands JSON policy. Prefer fixed server-side wrapper commands such as incident-read-service-status over allowing a general shell command with arbitrary arguments.

For Kubernetes, use namespace-scoped RBAC and allow only required read verbs. Do not grant create, update, patch, delete, deletecollection, bind, escalate, impersonate, or wildcard permissions.

Summarize with AI

Place an optional AI Agent after deterministic normalization and redaction. Give it the evidence envelope, require structured output, and disable all provider integrations and MCP tools. The agent may summarize evidence; it must not gain a side channel capable of changing external state.

Copy{
  "summary": "string",
  "facts": [
    { "source": "string", "observedAt": "date-time", "statement": "string" }
  ],
  "hypotheses": [
    {
      "statement": "string",
      "confidence": "low | medium | high",
      "supportingEvidence": ["string"],
      "contradictingEvidence": ["string"]
    }
  ],
  "missingEvidence": ["string"],
  "nextReadOnlyChecks": ["string"]
}

Validate the response deterministically before rendering it. Never treat model confidence as operational authorization.

9. Publish and test the boundaries

Save and publish the intended version. Run it with one narrow, non-sensitive incident window and compare the brief with the source systems.

Review provider audit logs during testing. They should contain only the approved read calls from the dedicated analysis identities.

Troubleshoot incident analysis

Production checklist

• The pipeline is dedicated to analysis and contains no remediation branch.
• Every provider identity is dedicated, minimal, and scoped to intended resources.
• Web Request blocks use approved query endpoints, GET, timeouts, and result limits.
• Services, environments, correlation IDs, and UTC window are validated before querying.
• Metrics, logs, and deployments connect to three distinct Join Evidence inputs.
• Empty, unavailable, truncated, and late sources remain distinguishable.
• Facts retain source and time; hypotheses retain support, contradiction, and confidence.
• Secrets and personal data are redacted before logs, AI, and Render.
• Optional SSH access uses host verification, an unprivileged account, and fixed read-only wrappers.
• Optional issue access uses a read operation and read-only provider identity.
• Optional AI has no integration or MCP tools and cannot change external state.
• Test evidence and provider audit logs show only approved reads.
• The final brief states that no automated remediation was performed.
