Test Runs, Output, Usage, and Errors

Test an AI Agent from the Designer with representative input, then inspect the AI block and every branch it can activate. The overall run status alone does not prove that the model step succeeded.

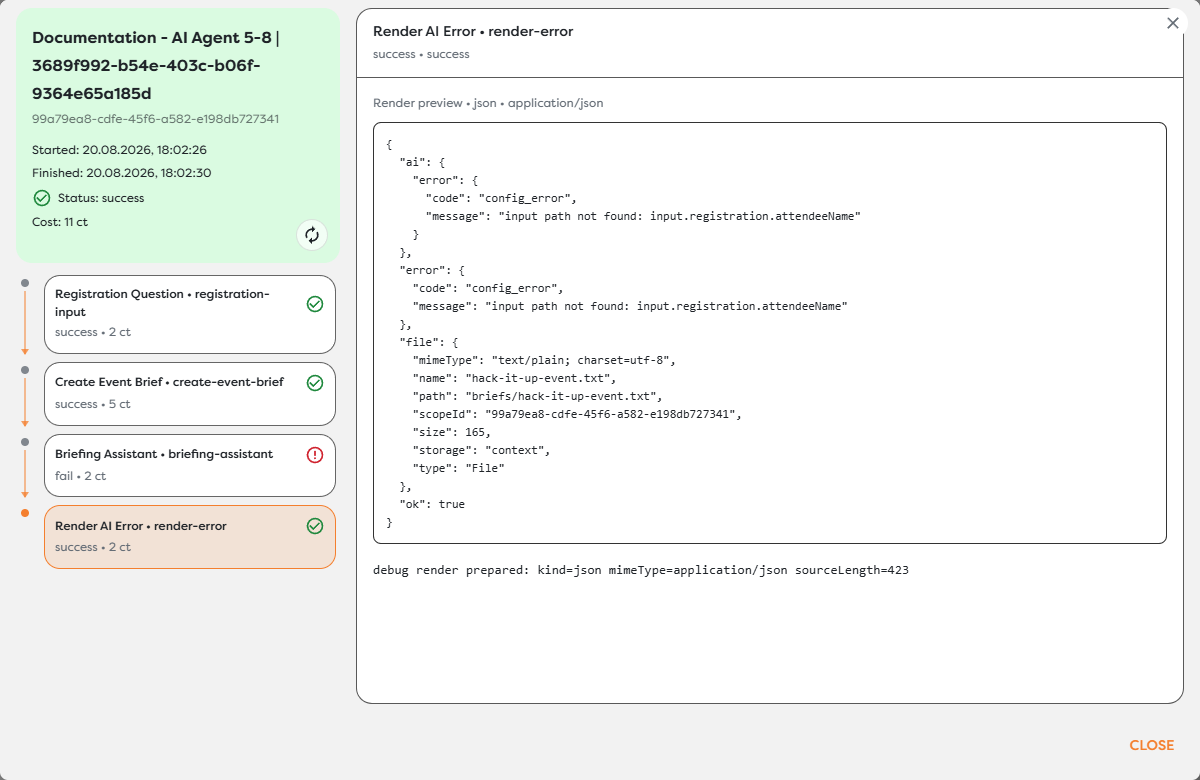

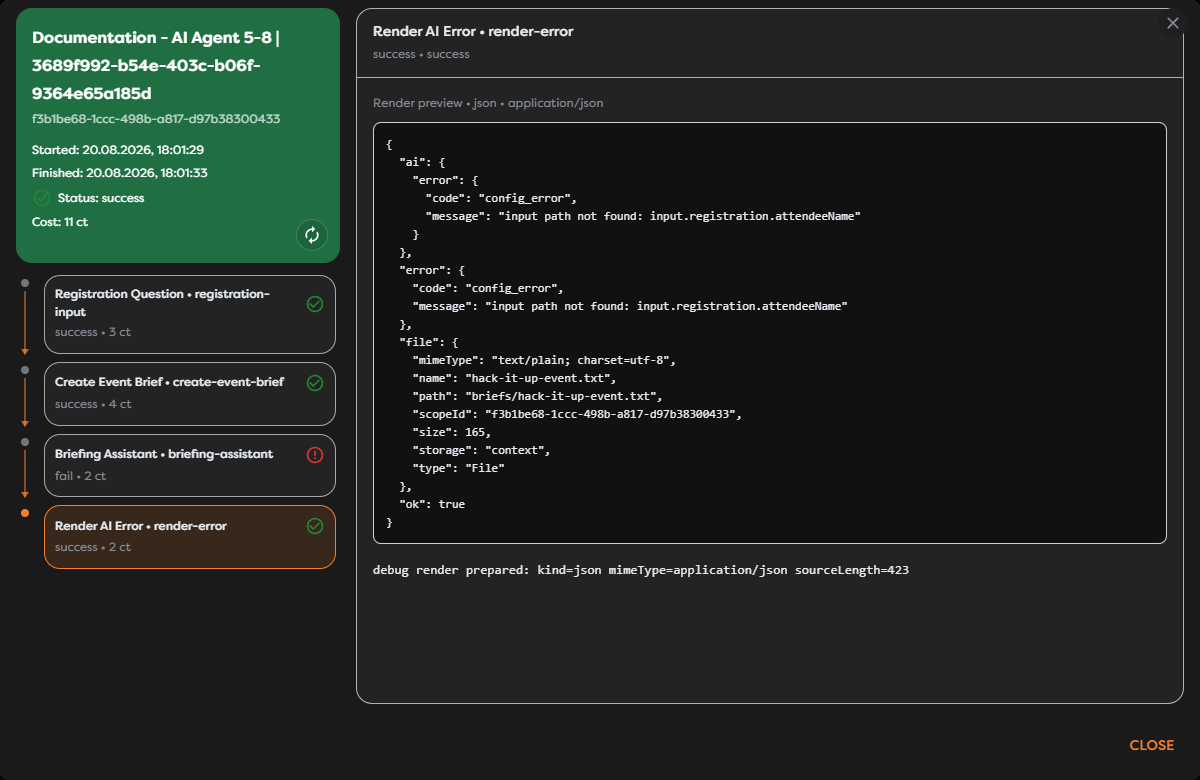

A completed test run whose AI Agent failed while the connected error-rendering branch completed successfully

Read the run as a block-by-block trace

The run inspector shows start and finish times, overall status, total compute cost, each executed block, and the selected block's output or logs. Select the AI Agent itself to inspect provider metadata, tool calls, response content, usage details, and errors available for that execution.

The screenshot demonstrates an important behavior: Briefing Assistant failed with a config_error, its Error connection activated Render AI Error, and the overall workflow finished successfully because the error branch completed. The green run status therefore means the workflow handled its executed path; it does not mean every block used Out.

Inspect both AI Agent ports

Port	Inspect	Verify downstream
Out	Generated text or structured data, provider and model metadata, tool results, and usage	The next block receives the exact shape and content it expects
Error	Error code, message, provider details, duration, and any partial context Builders exposes	Logging, fallback, alerting, or retry logic handles the failure deliberately

For structured output, a provider can return text successfully while the AI Agent still follows Error because the response is not valid against the configured JSON Schema.

For tools, confirm both sides of the action: the run trace should show what the agent requested, and the external system should show the expected result. A successful model response is not sufficient evidence that an email, Drive write, Slack message, or issue update was correct.

Distinguish usage types

Usage	Where it comes from	What to check
Workflow compute tokens (`ct`)	Executed workflow blocks	Total run cost and the cost shown next to each block
Builders AI tokens	Platform premium AI source	Billing-owner balance and source details
Private provider usage	Provider credentials configured for a private or team AI agent	Provider usage metadata and the provider account
Free source AI usage	Builders Free AI	AI usage is free, but executed workflow blocks still consume compute tokens

Do not treat ct as the model's prompt-token count. Workflow compute and AI-provider usage are different meters.

Test realistic input paths

Template expressions are resolved against the object that reaches the AI Agent's In port. An upstream processing or file block may replace the shape supplied by the trigger.

The screenshot shows this exact failure:

config_error: input path not found: input.registration.attendeeName

The trigger originally supplied registration data, but the AI Agent received the preceding File block's output. Fix this by explicitly preserving or merging the required registration fields, or by changing the prompt to reference the AI Agent's actual input. Do not hide the error with a fallback value unless missing data is genuinely acceptable.

Test every template path used by the prompt, conversation ID, attachments, tool configuration, and structured-output workflow.

Recognize common failure classes

Failure	Typical cause	First check
Configuration or template error	Missing input, Vault, or run path	Inspect the preceding block output and rendered expression path
Provider error	Credentials, provider availability, rejected request, or empty response	Inspect provider, model, source status, and error metadata
Timeout	Provider or tool did not finish before the configured limit	Check duration, provider health, tool latency, and Advanced > Timeout
Memory error	Empty conversation ID or unavailable memory storage	Inspect the resolved ID and memory configuration
Attachment error	Non-canonical value, unsupported media mode, or more than five files	Inspect the incoming File object and selected model capabilities
Structured-output error	Response does not satisfy the JSON Schema	Inspect raw response details and tighten prompt/schema alignment
Tool or integration error	Tool disabled, integration unavailable, MCP disabled, bad arguments, or external rejection	Inspect tool-call logs, integration selection, and external permissions

Build a useful test matrix

Before publishing, test:

A normal input that should use Out.
Missing and malformed values used by prompt templates.
The largest realistic prompt and attachment set.
Separate conversation IDs and repeated runs with the same ID when memory is enabled.
Every enabled tool, including an external permission failure.
A provider or timeout failure that should use Error.
Valid and invalid structured responses when JSON Schema is enabled.
A production-like AI source, because the free source is intended for interactive runs and its latency and behavior may differ from production.

Keep the error branch observable. Render the error during development, then send structured logs or alerts in production without exposing credentials, full private prompts, or unnecessary personal data.

Retry deliberately

Retry transient provider, network, or timeout failures only when the operation is safe to repeat. Limit retry count and preserve a stable correlation or idempotency key for side-effecting tools.

Do not blindly retry configuration errors, missing template paths, schema design errors, or an integration that requires MCP enablement. Those failures require a configuration change, not another identical execution.

An AI Agent can call a tool before a later timeout or provider failure is reported. Check the external system before retrying to avoid duplicate emails, messages, files, queue publications, or issue updates.

Verify before publishing

The intended source and model are selected.
All expressions resolve against the AI Agent's immediate input.
Attachments use canonical Files and supported media modes.
Conversation IDs isolate unrelated users and threads.
Only required tools are enabled and their integrations are MCP-ready.
Out matches the downstream contract.
Error is connected, observable, and tested.
Compute and provider usage are acceptable.
External side effects are correct and repeat-safe.
